Router WiFi para Iridium Edge

Descripción

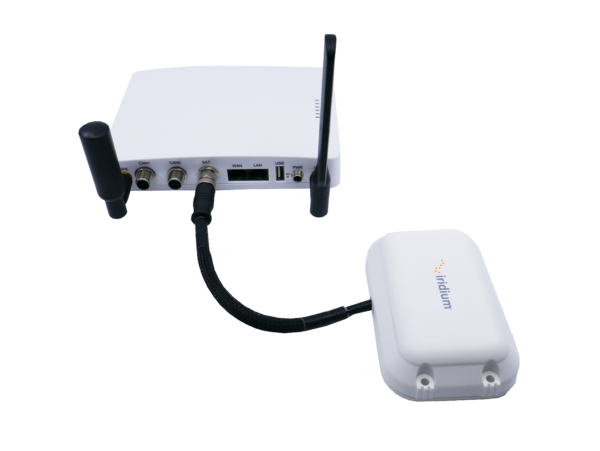

Router WiFi para Iridium Edge

• Allows Ethernet and WiFi connectivity to the Irdium Edge.
• No software development necessary.
• Simple API for developers wanting to create SBD applications.
• Least Cost Routing included to help developers wishing to reduce cost when in LTE coverage areas.
• CAN bus connections available to interface with vehicular or NMEA2000 networks.
• Powerful firewall with intelligent routing that can be used with Least Cost Routing.
• Remote support access features built-in.

Iridium Edge

• Hardware-Ready Device for simple, low risk integration
• Low-Cost Device for affordable customer adoption
• Satellite Add-On for truly global coverage
• Ready-To-Install for quick time-to-market
• Robust Power Supply for industrial installations
• Certified in key geographic markets
• 180° Line of Sight for compromised, partially blocked locations
• Iridium Short Burst Data (SBD) modem for Iridium’s superior network advantages

[ Router LTE / SATCOM ]

Size

8″x 6″x 2″

Weight

0.7 lbs

Processor

550 Mhz MIPS Processor

Memory

RAM – 256 MB
Flash – 32 MB
Storage – 1GB

WiFi

Dual band Wifi 2.4Ghz and 5Ghz

LTE Modem

Cat 6 LTE Modem with up to 300Mbps downlink and 50Mbps uplink

LTE Bands

B2/B4/B5/B7/B12/B13/B25/B26/B292/B30/B66 North America

GPS

72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F
BeiDou B1I, Galileo E1B/C
SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN

Power

9-60V DC with polarity protection
2A peak power consumption

Outdoor Antenna

Cable Leads

RG174, 0.5 Meter

LTE Connector

SMA Female

GPS Connector

SMA Female

Mounting

3M Adhesive

Operating Temperature

-10°F to +140°F

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2 hours

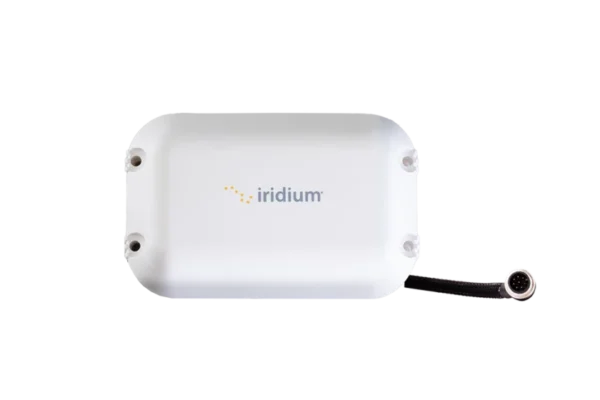

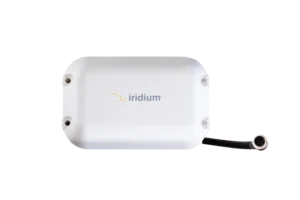

Iridium Edge

Frequency

1616 – 1626.5 MHz

Message Size

270 bytes (Receive)

340 bytes (Transmit)

SBD Transceiver

Iridium 9602N

Antenna

Integrated Iridium certified antenna

Dimensions

130 mm (L) x 80 mm (W) x 30 mm (H)

Ingress Protection

IP 67

Side and Bottom Cable Exits

Connector

M12-8 pin male, terminated on 20cm pigtail cable

Installation Options

Pole, Screw, Tape

Power

Power Supply

9-32V, SAE J1455 Load Dump Protected

Maximum Power

1.6W ( Peak for Short Transmit Burst)

Low Power Modes

< 200uA

Reverse Polarity Protection

Operating Temperature Range

-40°C to 85°C

Storage Temperature Range

-40°C to 85°C

Vibration

SAE J1455, Section 4.10

Certifications

Iridium Satellite Network Certification

RoHS Compliant

FCC, IC, CE, Australia Approvals

Interfaces

RS232 AT Command Interface

On/Off Control Lines
